#Troubleshooting Observability

Observability is all about plugging your applications into collectors - Prometheus for metrics, Logstash for logs and Jeager for traces.

Those collectors are each part of their own subsystem, which need to plug into other components.

There is a lot of configuration between all these things, making sure the pieces can talk to each other and that they're sending information in the expected format to the expected location.

Plenty of things can go wrong in the setup, which will manifest as your apps missing logs or metrics, or parts of traces not being reported.

#Lab

This one is all lab 🙂

There are four sets of containers to run:

• metrics.yml - Prometheus (we won't use Grafana this time round)
• logging.yml - the ELK stack
• tracing.yml - Jaeger
• apps.yml - application containers
• load.yml - a load-test tool (Fortio), configured to send requests to the web app to generate instrumentation

Start all the containers:

docker compose -f labs/troubleshooting/metrics.yml -f labs/troubleshooting/logging.yml -f labs/troubleshooting/tracing.yml -f labs/troubleshooting/apps.yml -f labs/troubleshooting/load.yml up -d

Browse to the app at http://localhost:8070 and list the documents for the default user, to check the app is OK

The load-generator containers will keep making HTTP requests so you'll have lots of data to work with, but if that's making your machine work too hard, you can stop them and make manual website calls instead:

docker compose -f labs/troubleshooting/load.yml stop

Your goal is to get the observability stack working correctly and reporting everything:

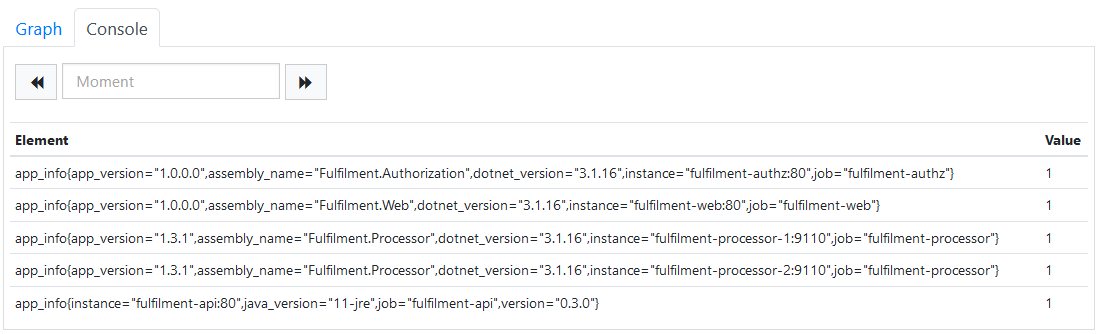

• the metrics in Prometheus at http://localhost:9090 should show an app_info metric for every component instance:

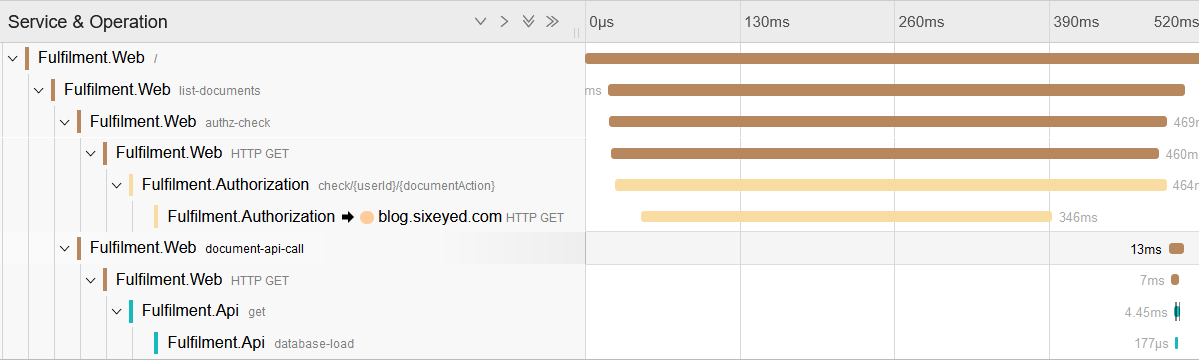

• the Fulfilment.Authorization service traces in Jaeger at http://localhost:16686 should show 10 spans:

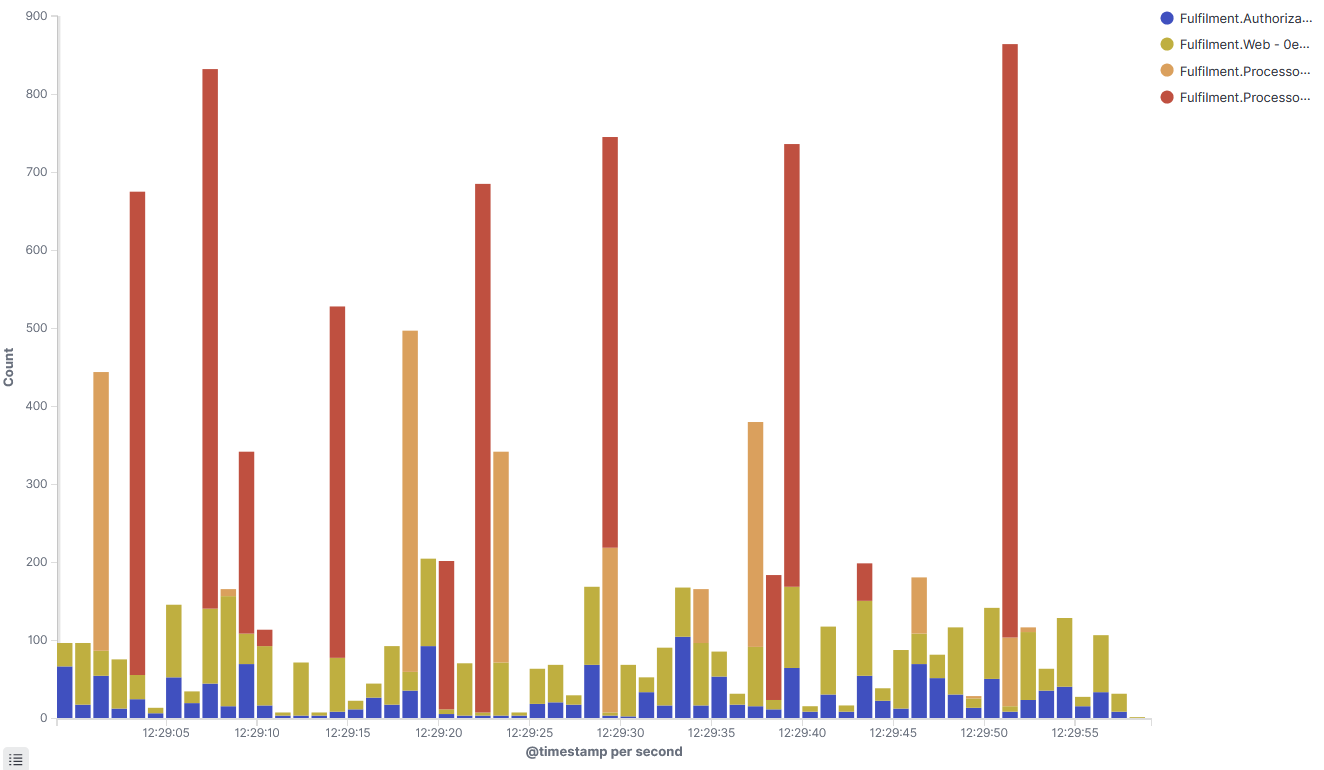

• an area visualization in Kibana at http://localhost:5601 showing count of documents over time, split by AppName and by MachineName, should show four application instances writing logs:

This is not meant to be a Docker troubleshooting exercise - all the app and networking configuration is in Docker Compose, so there may be issues there or in the observability component configuration.

When you find issues, update the files to fix them and run this to restart the containers:

docker compose -f labs/troubleshooting/metrics.yml -f labs/troubleshooting/logging.yml -f labs/troubleshooting/tracing.yml -f labs/troubleshooting/apps.yml restart

Don't go straight to the solution! These are the sort of issues you will get all the time, so it's good to start working through the steps to diagnose problems.

Stuck? Try hints or check the solution.

#Cleanup

Clean up by removing this lab's containers:

docker compose -f labs/troubleshooting/metrics.yml down
docker compose -f labs/troubleshooting/load.yml down

This removes only the containers this lab started. If you want a clean slate, docker ps will show anything still running.
