#Building Grafana Dashboards

It's easy to go overboard with visualizations and build fancy panels for every metric you capture. There will be too much information if you have more than a dozen or so panels on your dashboard, and it will stop being effective.

You should build your dashboards starting from a wireframe where you sketch out panels which answer the questions you have about the status of your app.

#Reference

• Best practices for creating dashboards
• Sample dashboards - official and community-built examples
• Grafana configuration
• Automatic provisioning for Grafana

#Run Prometheus & Grafana

We'll run the metrics components in Docker containers again, but this time we'll make use of Grafana's automation so we don't need to configure a data source manually:

• metrics.yml - Prometheus and Grafana, with custom configuration files
• datasource-prometheus.yml - provisioning to set up the Prometheus data source
• custom.ini - custom configuration settings

Run the metrics containers:

docker compose -f labs/grafana-dashboard/metrics.yml up -d

Browse to Grafana at http://localhost:3000

Sign in with the configured credentials:

• username: admin
• password: obsfun

We're using the light theme by default now; browse to http://localhost:3000/datasources and you'll see Prometheus is already configured.

Prometheus is running too, using a new configuration:

• prometheus.yml - we have the tier label, and a new label for the document processor - instance_number; that will have 1, 2 or 3 which is easier to work with than the full instance label.

Browse to http://localhost:9090/service-discovery

Click show more for the fulfilment processor job, and you'll see the new target labels which will be applied to all metrics.

Run all the demo apps and the metrics will start being collected (apps.yml specifies all the containers):

docker compose -f labs/grafana-dashboard/apps.yml up -d

#Visualzing counters and gauges

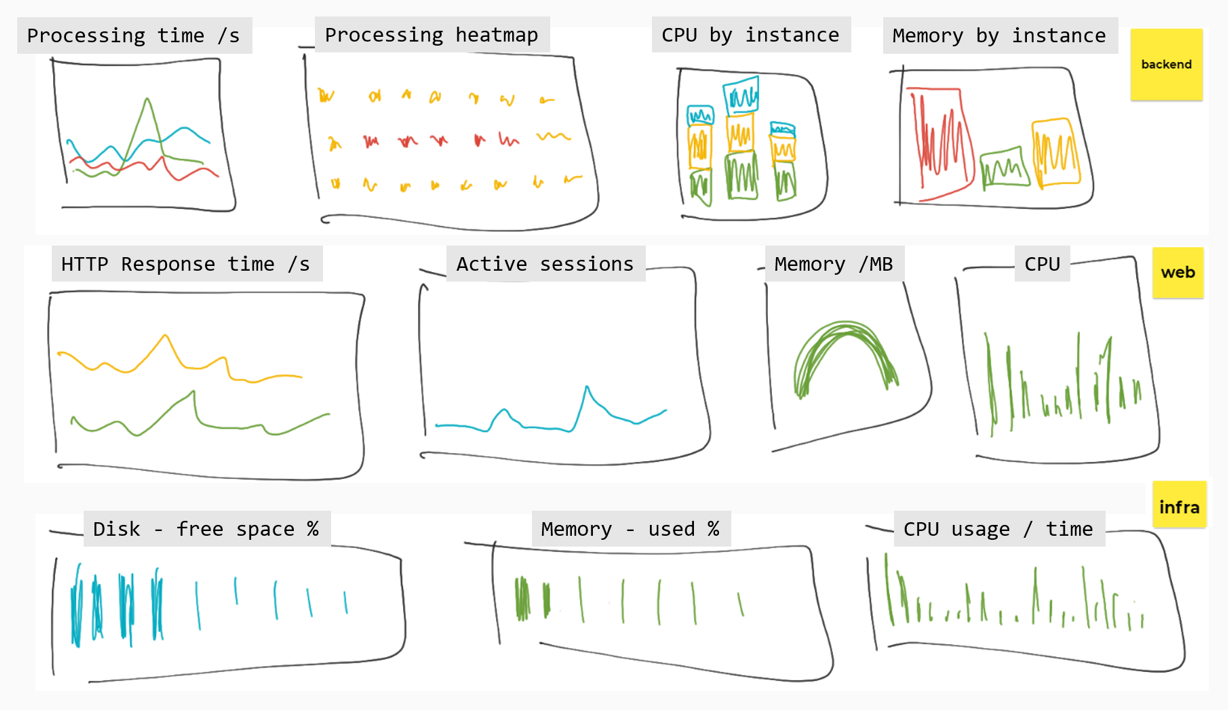

We're going to build a dashboard for the demo app, focusing on some of the SRE Golden Signals. Here's the sketch showing what we're looking for:

Different visualizations work well for different types of data. In these exercises you'll be given the PromQL and some guidance, but you don't need to represent panels exactly as they are here.

All our components record CPU and memory usage so we can build panels to show saturation.

#Fulfilment processor saturation

This one is nice and simple. For the memory visualization, we can use the dotnet_total_memory_bytes metric - it's only produced by this component.

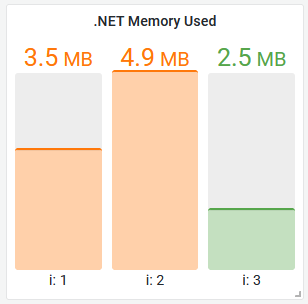

A bar gauge would be a good representation, showing one bar per instance. This is a lightweight component, under 3MB of memory is good, up to 5MB is OK - above that isn't so good. It would look something like this:

This component produces a process_cpu_seconds_total metric to show CPU usage - but other components use the same metric name. To build a panel for this you'll need to filter by label:

sum without(instance, job) (rate(process_cpu_seconds_total{job="fulfilment-processor"}[5m]))

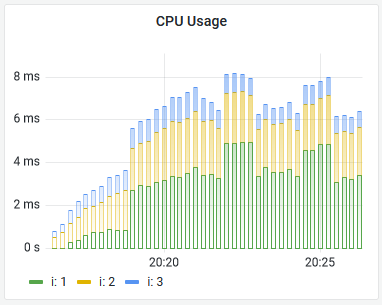

A time series visualization would work well, using bars to show the stacked results, something like this:

#Document API and node saturation

These are more counters and gauges to visualize.

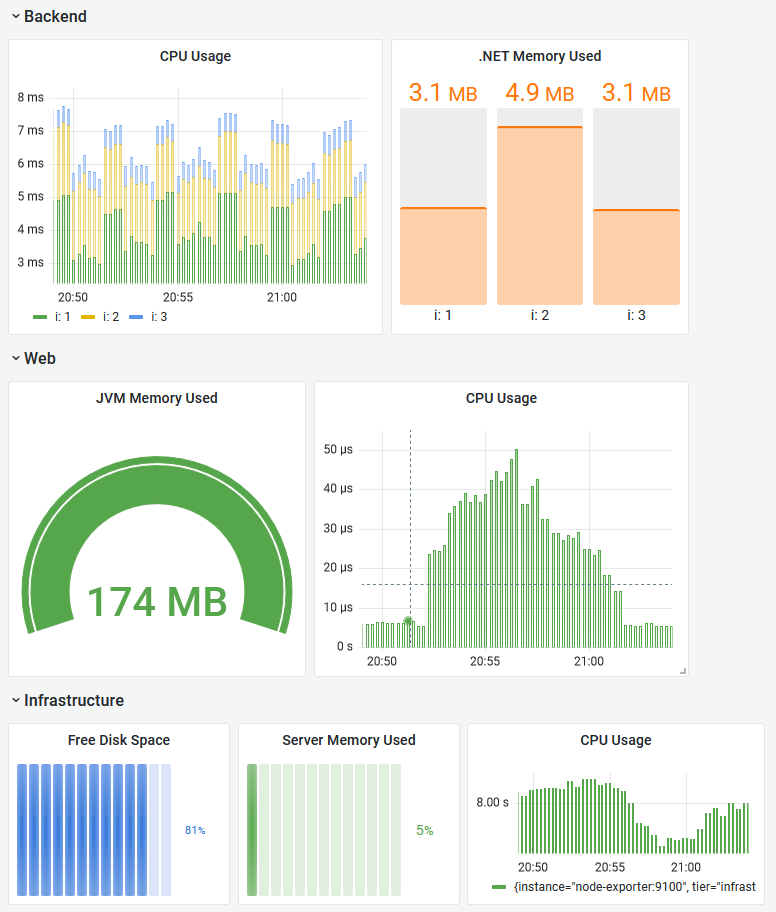

Rather than do more of the same, you can import the dashboard from dashboards/part-1.json to load the rest of the saturation panels:

Load this dashboard and edit the panels to see how they're put together

sum without(instance, job, tier, id, area) (jvm_memory_used_bytes{job="fulfilment-api"})

sum without(job) (rate(process_cpu_usage{job="fulfilment-api"}[5m]))

(node_memory_MemTotal_bytes - node_memory_MemFree_bytes - node_memory_Buffers_bytes - node_memory_Cached_bytes - node_memory_SReclaimable_bytes) / node_memory_MemTotal_bytes

min without(mountpoint) (node_filesystem_avail_bytes) / min without(mountpoint) (node_filesystem_size_bytes)

sum without(job, cpu, mode) (rate(node_cpu_seconds_total[5m]))

#Visualzing summaries and histograms

Latency is the next important signal - we can add visualizations to show average HTTP request times for the document API, and percentile document processing times.

You can load the completed visualizations for this section from dashboards/part-2.json, or continue to build them yourself

The Java API records a summary metric called http_server_requests which includes a response code label, so we can graph durations for OK and non-OK responses.

Add a new panel and use this PromQL to get the average durations:

sum by(status) (rate(http_server_requests_seconds_sum{job="fulfilment-api"}[5m])) /  sum by(status) (rate(http_server_requests_seconds_count{job="fulfilment-api"}[5m]))

• a time series visualization is fine here
• unit: duration (s)
• legend: {{status}}

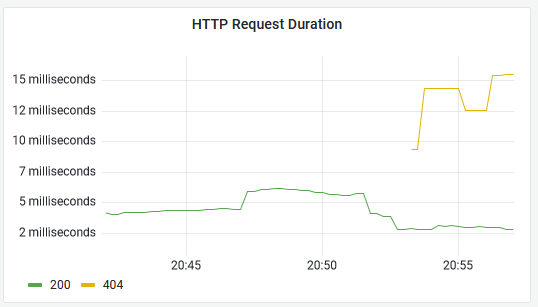

Your panel will look something like this - browse to http://localhost:8080/documents and http://localhost:8080/notfound to produce data with different response codes:

Summaries only give you a coarse average, compared to histograms. You store less data but you can't break down the average to see outliers.

The fulfilment processor records a histogram of processing times. You can use Promtheus' histogram_quantile function to generate percentiles. This PromQL will give the 90th percentile processing time, split by instance:

histogram_quantile(0.90, sum without(instance, job, tier)(rate(fulfilment_processing_seconds_bucket[5m])))

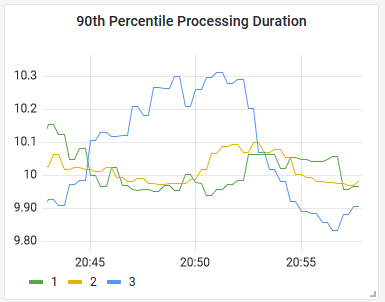

We can use that to show the 90th percentile processing time, i.e. the processing duration for 90% of documents (with the remaining 10% taking longer):

There's nothing special about the response from a histogram query, you can build it into a panel in the usual way with a time series visualization.

#Lab

Grafana does have special handling for histograms - you can visualize them as heatmaps which clearly show the distribution of data over time.

To finish the dashbord, put together a heatmap for the fulfilment processing time histogram using this query:

avg by(le) (rate(fulfilment_processing_seconds_bucket[5m]))

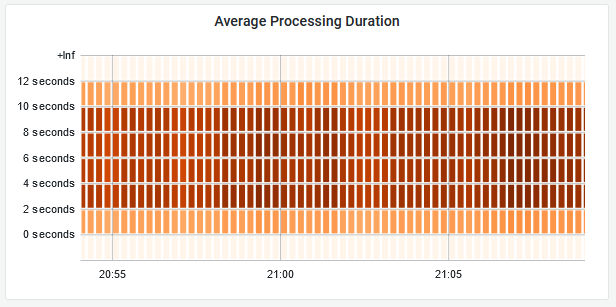

Your panel will look something like this:

Stuck? Try hints or check the solution.

#Cleanup

Clean up by removing this lab's containers:

docker compose -f labs/grafana-dashboard/metrics.yml down
docker compose -f labs/grafana-dashboard/apps.yml down

This removes only the containers this lab started. If you want a clean slate, docker ps will show anything still running.
